PMUT chips · custom arrays · OEM wafer supply
1–60 MHz platform scopeProject-specific designs around requested center frequency, bandwidth and application.
Five commercial frequency families1–5 · 5–10 · 10–20 · 20–40 · 40–60 MHz product-selection ranges.
32 to 1024+ elementsSingle elements, linear, phased, 2D matrix and miniaturised architectures.
8-inch scale-up routeEngineering samples, pilot wafer runs and volume-production planning.
Choose the PMUT frequency family your system needs
A commercial PMUT platform page for ultrasound manufacturers. Start with the acoustic range, then specify the array architecture, element count, delivery format and expected production volume. 25FAB supports engineering samples, pilot wafer programs and recurring wafer-level supply.
25FAB PMUT Platform
From die-level samples to recurring wafer supply
Designed for OEM engagement rather than complete ultrasound-system sales.
Commercial product selection
Five PMUT frequency families from 1–60 MHz
Select the closest commercial range first. Final center frequency, bandwidth, array geometry, pitch, aperture and delivery format are then engineered around the OEM specification.
1–60 MHz
25FAB presents the PMUT portfolio as five clear commercial frequency families. The ranges are product-selection windows, not a claim that a single device operates flat across the complete span. Final center frequency, bandwidth, geometry and array architecture are engineered around the customer requirement.
1–5 MHz
5–10 MHz
10–20 MHz
20–40 / 40–60 MHz
Order by frequency
Commercial PMUT frequency families
Choose the closest range and click “Request RFQ”. Your email client opens with the frequency family and specification fields already prepared. The website itself collects no data.
PMUT-15OEM program
1–5 MHz
Low-frequency / deeper acoustic rangeCustom OEM programs for larger apertures, deeper acoustic penetration, general imaging and industrial ultrasound.
Typical array options
32 · 64 · 128 · 256 · Custom
32 · 64 · 128 · 256 · Custom
PMUT-510Volume program
5–10 MHz
Core OEM imaging rangeHandheld ultrasound, vascular imaging, procedural guidance and high-performance linear / phased-array concepts.
Typical array options
64 · 128 · 256 · 512 · Custom
64 · 128 · 256 · 512 · Custom
PMUT-1020Volume program
10–20 MHz
High-resolution rangeHigh-resolution linear imaging, superficial structures, vascular, MSK, aesthetics and compact imaging systems.
Typical array options
64 · 128 · 256 · 512 · 1024
64 · 128 · 256 · 512 · 1024
PMUT-2040Custom high-frequency
20–40 MHz

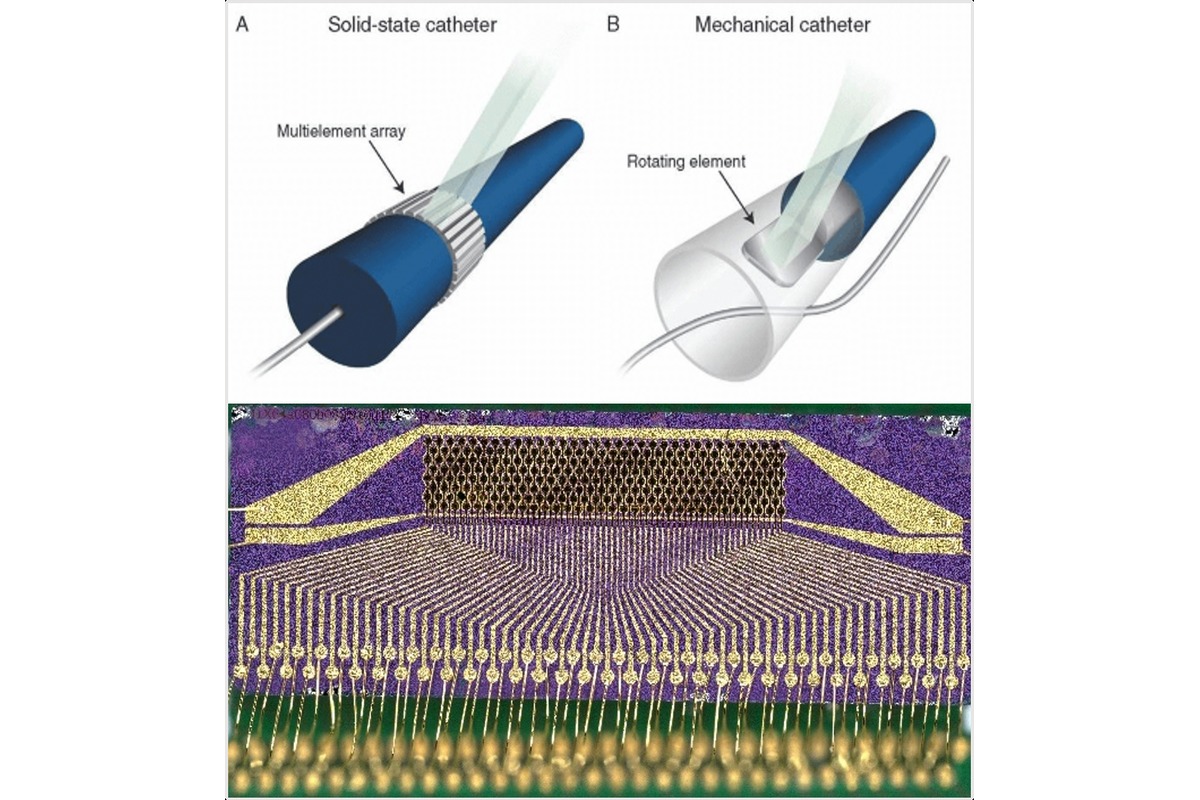

Miniaturised / very-high-resolution rangeCatheter-scale ultrasound, IVUS-oriented development, micro-imaging and miniaturised arrays.
Typical array options
Linear · Phased · Miniature · Custom
Linear · Phased · Miniature · Custom
PMUT-4060Specialised program
40–60 MHz
Ultra-high-frequency rangeSpecialised PMUT engineering for micro-imaging, very-high-resolution sensing and application-specific ultra-high-frequency devices.
Typical array options
Single · Miniature · Custom
Single · Miniature · Custom
Frequency ranges are commercial design families. Final device bandwidth, output, sensitivity, impedance, pitch, aperture and array architecture depend on the agreed customer specification and engineering review.
Configure the array
Specify the chip, not an entire ultrasound machine
25FAB is positioned as the transducer-chip and wafer partner. OEM electronics, beamforming, software and regulatory integration remain with the system manufacturer unless separately agreed.
Array architecture
Single element · Linear · Phased · 2D matrix · Miniaturised / catheter-scale · Custom geometry.
Element count
32 · 64 · 128 · 256 · 512 · 1024 · 1024+ custom architectures subject to design review.
Delivery format
Diced die · Engineering wafer · Full wafer · Repeated wafer-level supply program.
Production route
Engineering samples · Pilot run · Dedicated wafer program · Volume-production planning.
How to order
A simple OEM RFQ path
Customers should be able to understand the commercial process in less than one minute.
Supply model
Prototype, pilot and volume production
The commercial page makes the supply route explicit so procurement teams know what to ask for.
Engineering & pilot orders
- Custom frequency and array review
- Engineering dies or wafer-level samples
- Design iteration against agreed targets
- Characterisation scope agreed per project
Large-volume / recurring orders
- Dedicated wafer-based supply planning
- 8-inch scale-up route
- Lot and annual-volume planning
- Recurring manufacturing and delivery schedule
For volume enquiries, include forecast information from the first RFQ.Recommended: expected annual demand, preferred wafer / die delivery format, target qualification date and desired production start. This lets 25FAB discuss a production route instead of treating the request as a laboratory sample order.
Need a PMUT frequency that is not listed?
Send the center frequency, bandwidth, array type, element count, application, prototype quantity and expected annual volume. Custom and dual-frequency programs can be reviewed.
